About ProjectViK

ProjectVik2011 is an application on the basis of AutoCAD used to design external pressure and gravity pipeline networks, particularly, water mains and sewerages. ProjectVik2011 is based on a unique method of creating a digital pipeline network model (DPNM). A group of designers gradually creates the digital model and makes alterations to it in the process of work on the project. DPNM technology ensures control of collisions, coordination of all the drawings of the design, specification and other reports in accordance with the alterations. This ensures consistency and integrity of the whole project.

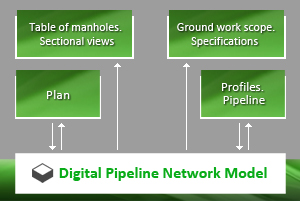

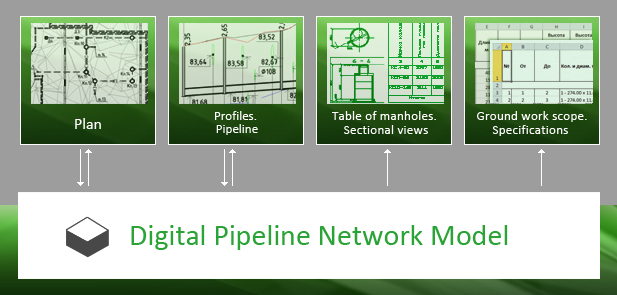

Digital Pipeline Network Model

The source data of DPNM are the networks themselves as well as manholes and other objects drawn in the network. If the objects are edited in the drawings, the application will update the DPNM.

Principles of work in ProjectVik2011

• Not to limit the user’s possibilities in AutoCAD. One can edit everything in every possible way.
• To use AutoCAD graphic primitives familiar to users.
• To automate all routine operations which do not require a creative approach of the designer.
• Use ramp-loading technique and dynamic tests for convenient work and early error detection.
